Transformer spot welding machine

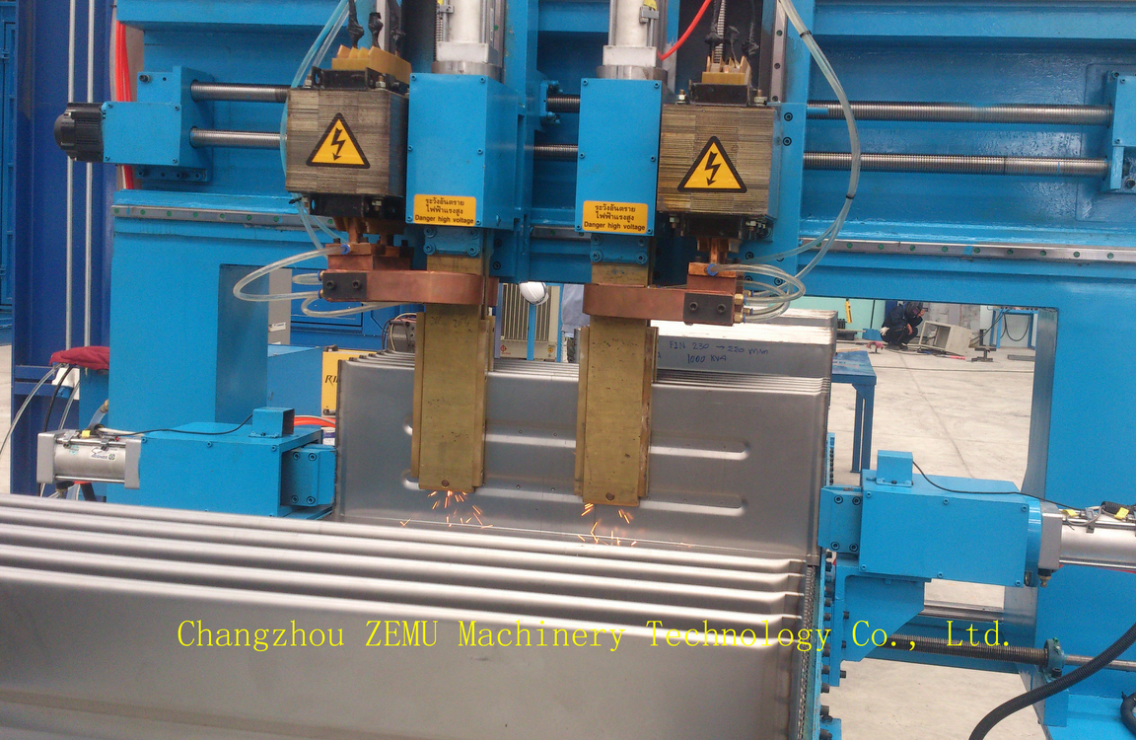

This Corrugated Fin spot welding machine is used to increase the strength of reinforcement slots. Embossing across the fin with spot welding is the added advantage. This gives the stability to the fin, avoiding deformations.

1.  General Description

This Corrugated Fin spot welding machine is used to increase the strength of reinforcement slots.

Embossing across the fin with spot welding is the added advantage.

This gives the stability to the fin, avoiding deformations.

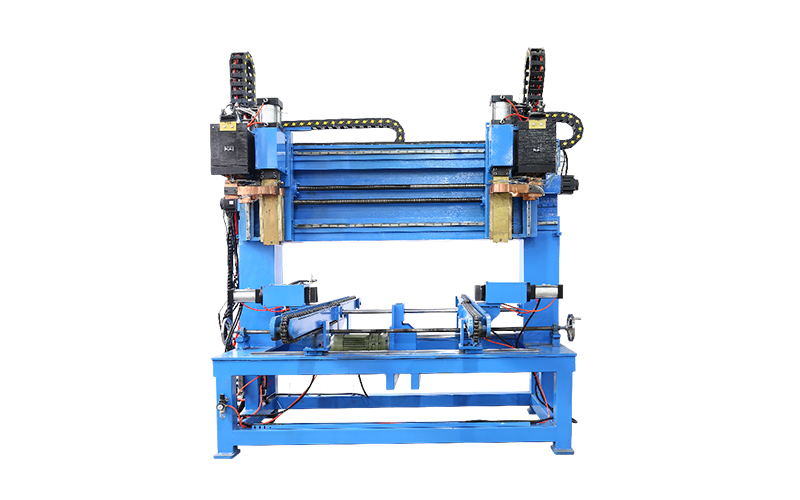

2. Main Units of Corrugated Fin Spot Welder Machine for Embossment

1) Conveyor

2) Centering system

3) Clamps & generators

4) Cooling system

5) Control console with computer

3. Parameters of Corrugated Fin Spot Welder Machine for Embossment

1) With 2 spot guns

2) Total rated power: 50KVA x 2

3) Cooling system

4) HMI control system

5) Suitable fin width: >=600mm

6) Suitable fin height: >=120mm

7) Air source: Self provided

8) Air pressure: 0.6Mpa(minimum)
